Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line

Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line
Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line
Informacion basica
Lugar de origen: Shanghai, China
Nombre de la marca: Daesum
Cantidad de orden mínima: 1
Mejor precio Contactar ahora
vídeo-inspección-saliente: Proporcionó informe de prueba de maquinaria: Proporcionó
Componentes principales: PLC, Silo, Mezclador, Transportador de tornillo Aplicación: Construcción
Voltaje: 380 voltios Potencia(w): 400
Peso: 200000 KG Garantía: 1 año
Puntos clave de venta: Automático, fácil de operar, larga vida útil, preciso Nombre de la máquina: planta de mezcla
Producto: Polvo seco/mortero/yeso Pesaje del sacle: 8 juegos
Material: Acero/hierro Mezclador: 2 set
Capacidad de producción: 60000 toneladas/año Tipo de comercialización: Producto ordinario
Servicio postventa proporcionado: Sí Automatización: Dosificación y pesaje
Función: Mezcla de mortero seco
Resaltar:

Automatic dry mortar mix plant 380V

,

Dry mortar mixing line 60000 ton/year

,

Construction mortar plant 400W capacity

Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 0Dry powder/mortar Mixing plant

Introdction

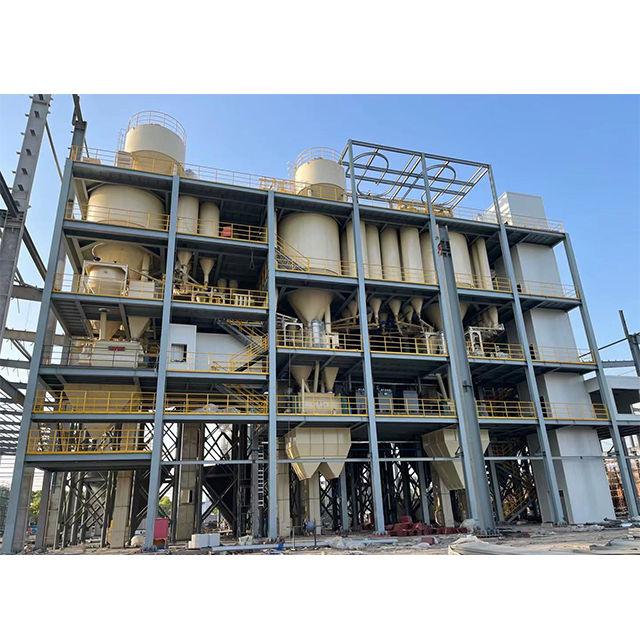

  The mortar mixing plant is mainly composed of mixing host, material weighing system, material conveying system, material storage system and control system and other auxiliary facilities.

  The mixing plant has the advantages of environmental protection, energy saving, high efficiency, stability and safety.



Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 2



 Product parameters



Production line type DX-PT20-2 Dry sand storage silo(s)  40m³*4
Product type Speacial powder product

Powder storage silo(s)

  40m³*4
Yearly output(one shift)  60,000 MT  Small material silo(s)  30m³*8
     Additive silo(s)  0.5m³*12
Yearly output(one mixer)  30-40 Thousand MT Finished product hooper(s)  5m³*2
Powder product output  2*12t/h Valve bag packing line(s)  3-mouth impeller packer*2
Mixer*2  WAM 2m³ Plough type  dust exhauster(s)

28 sets
Weighing system  8 sets Blow tank(s) 6 sets
WAM manual butterfly valves  24 sets  WAM pneumatic butterfly valve(s)  18 sets
 WAM screw feeders 23 sets  Small and micro material dosing screw feeder(s)  12 sets

Peripheral Equipment



Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 4Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 6Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 8Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 10



Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 12Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 14Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 16Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 18Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 20
